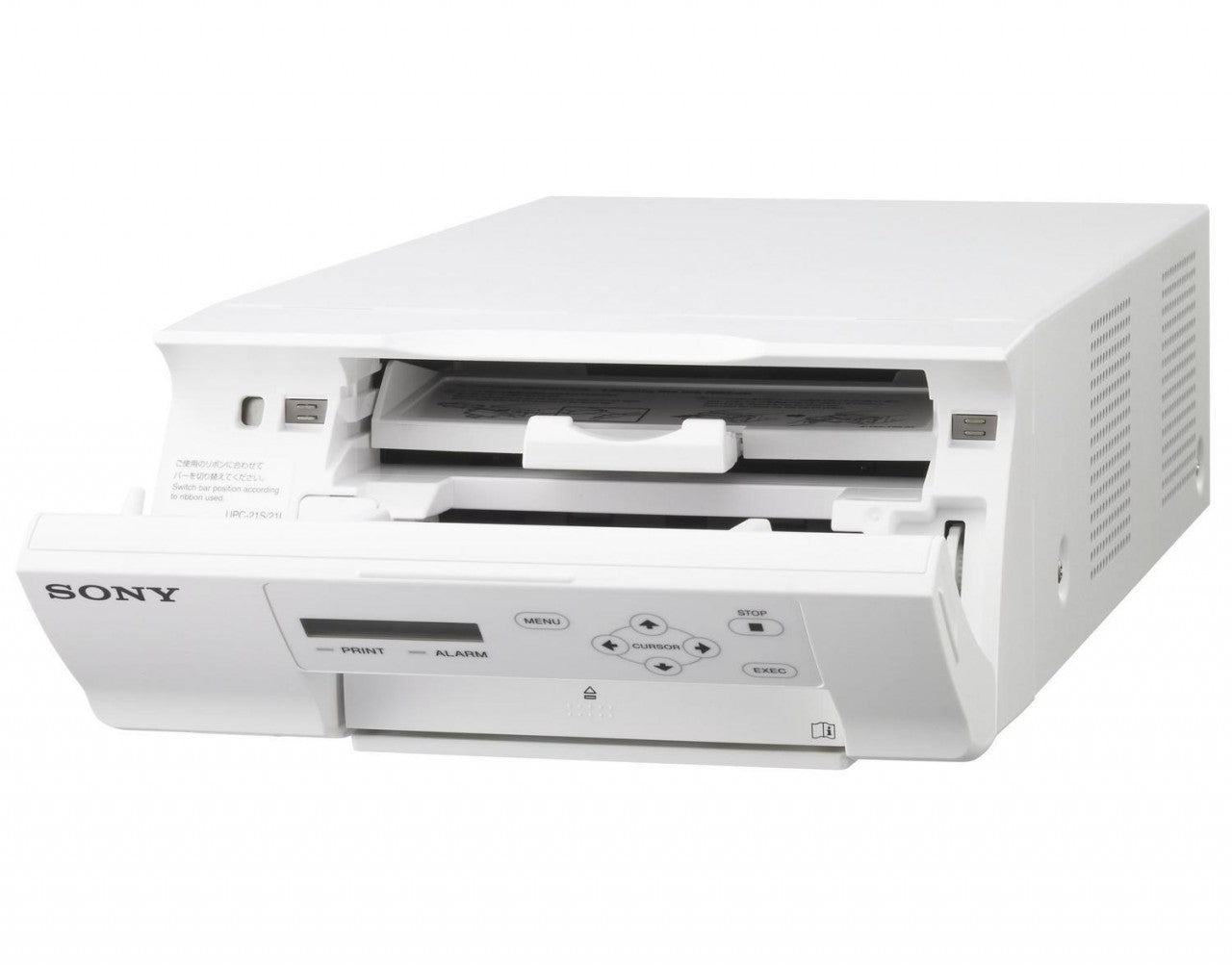

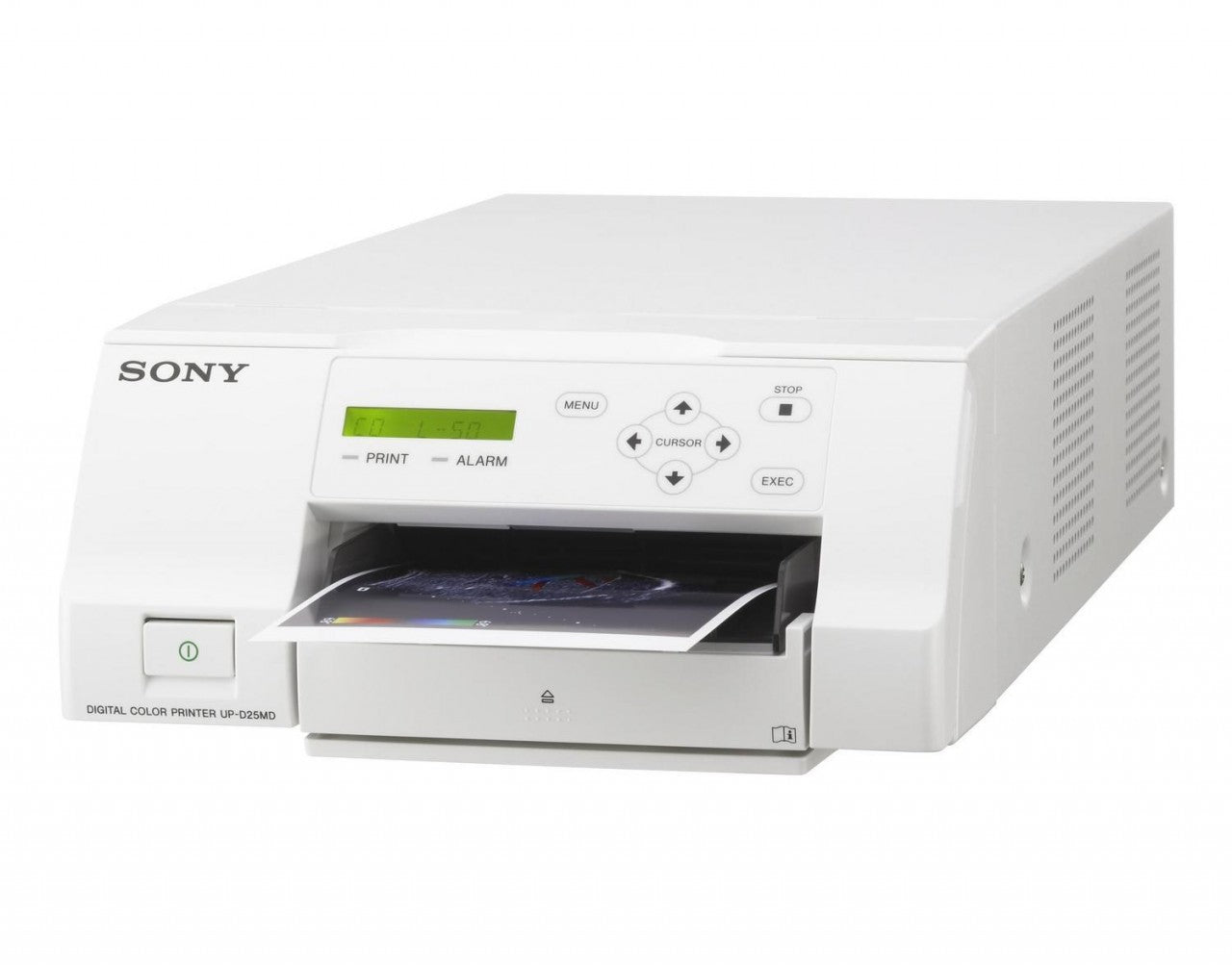

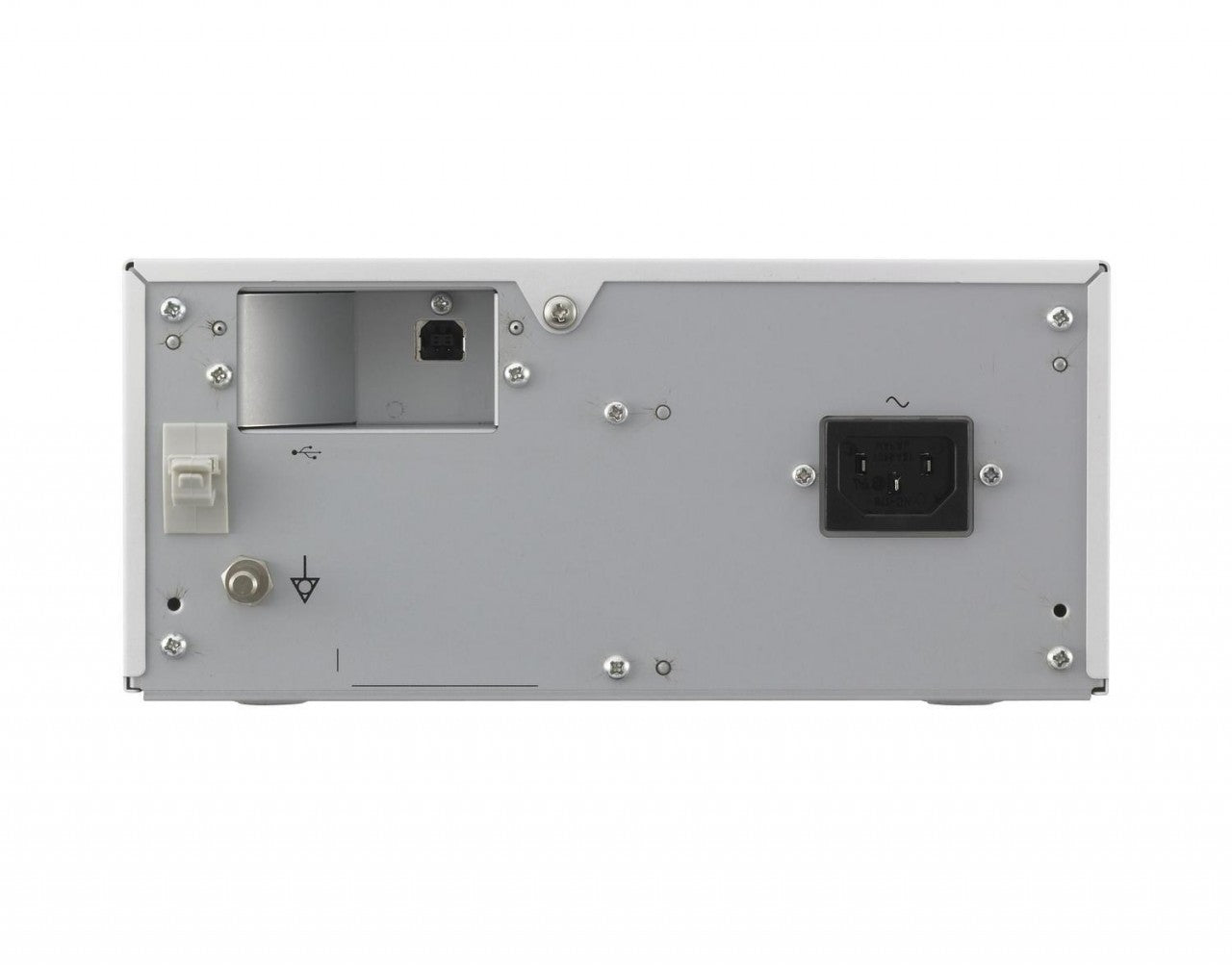

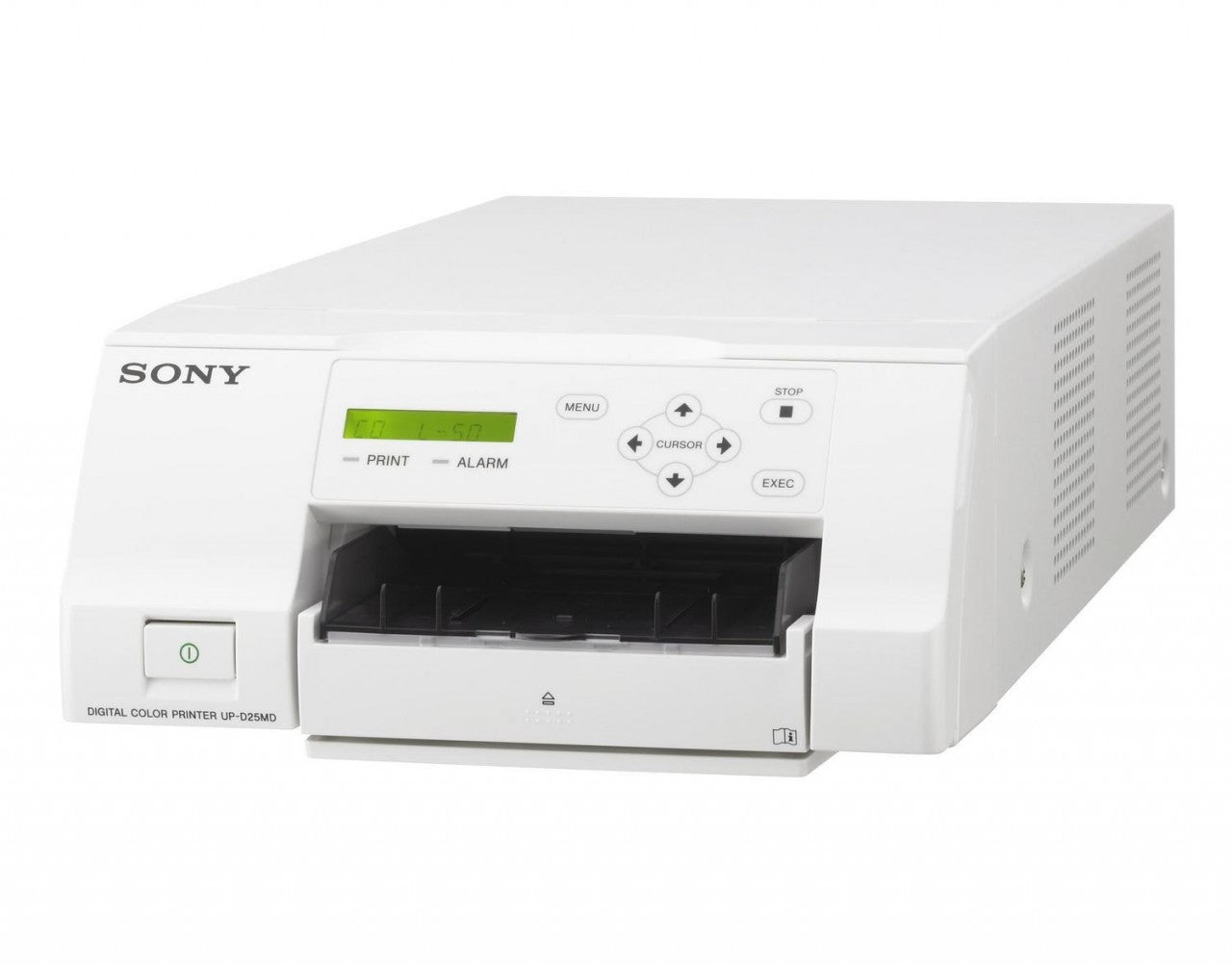

Sony UP-D25MD Printer Color

The UP-D25MD digital color dye sublimation printer is optimized for ultrasound, endoscopy, and cardiology applications. The new UP-D25MD replaces the UP-D23MD offering a smaller footprint and range of enhanced features.

The UP-D25MD accepts standard Sony color print media as well as an optional laminated media model, providing long-lasting picture quality with high resistance to water and fingerprints, making it an ideal choice for any medical environment.

Highlights:

• Slim Compact Design - Ideal for Medical Carts; Easily Integrated
• Attaches directly to ultrasound or endoscopic systems via USB 2.0
• Excellent Print Quality with Sony’s Dye Sublimation Printing technology
• High resolution – 423 dpi
• New LCD Front Panel Screen design
• Two color settings can be set from the front panel
• White LED light flashing during ribbon cartridge replacement and data transmission

Specifications:

• Connector: Digital (USB)
• Dimensions: 8 3/8" X 3 7/8" X 15 5/8" (WHD)
• Gradation: YMC images using 8 bit/256 gradations per color
• Input Current: 1.7-1.0 A
• Interface: USB 2.0
• High Speed Interface
• Paper Tray Capacity:
• S Size tray: Max. 80 sheets
• L Size tray: Max 50 sheets
• Power Consumption: AC 100 to 240V, 50/60Hz
• Print Media:
• UPC-21L (L size standard color print pack) (4 x 50 packs)
• UPC-21S (S size standard color print pack) (3 x 80 packs)
• UPC-24SA (S size Laminated color print pack) (3 X 80 packs)
• UPC24LA (L size Laminated color print pack) (4 X 50 packs)
• Print Size:
• UPC-21L/UPC-24LA Size: Full 5 x 3 3/4"
• UPC-21S/UPC-24SA Size: Full 3 3/4 X 2 7/8"
• Print Speed NTSC:
• UPC-21S approx. 19 sec
• UPC-21L approx. 29 sec
• Printing Method: Dye Sublimation
• Thermal Printing Resolution: 423 DPI
• Safety Compliance: UL 1950 and UL 2601-1 Listed; CSA C22.2 No. 601.1; No. 950; EN60950; EN60601-1
• Thermal Head: 423 DPI
• Weight: Approx. 12.2 pounds
• Print Media:
• Sony UPC-21L
• Sony UPC-21S
