Handheald Ultrasound or scaner probe wireless C10TX Dual-probes Multipurpose Convex + linear + Cardiac / Frequency 3.2/5Mhz , 7.5/I0Mhz ，2.5/5MhzFirstMedcorp.us

Handheald Ultrasound or scaner probe wireless C10TX Dual-probes Multipurpose Convex + linear + Cardiac / Frequency 3.2/5Mhz , 7.5/I0Mhz ，2.5/5MhzFirstMedcorp.us

$2,090.00 USD
$2,090.00 USD
Sale Sold out

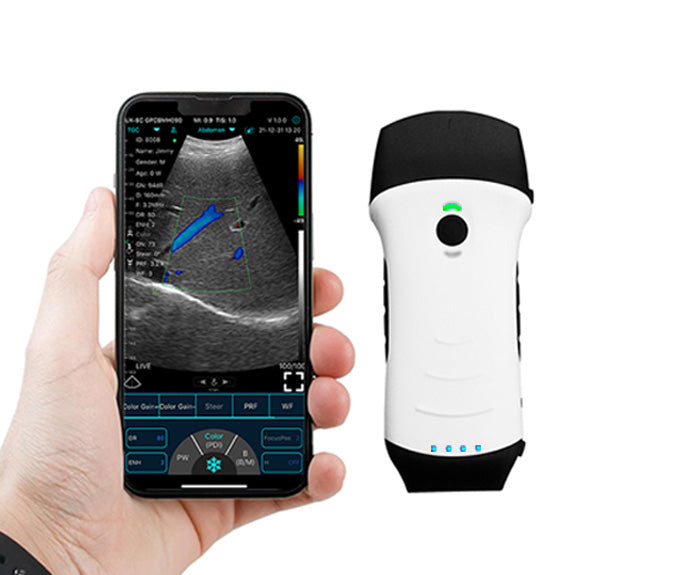

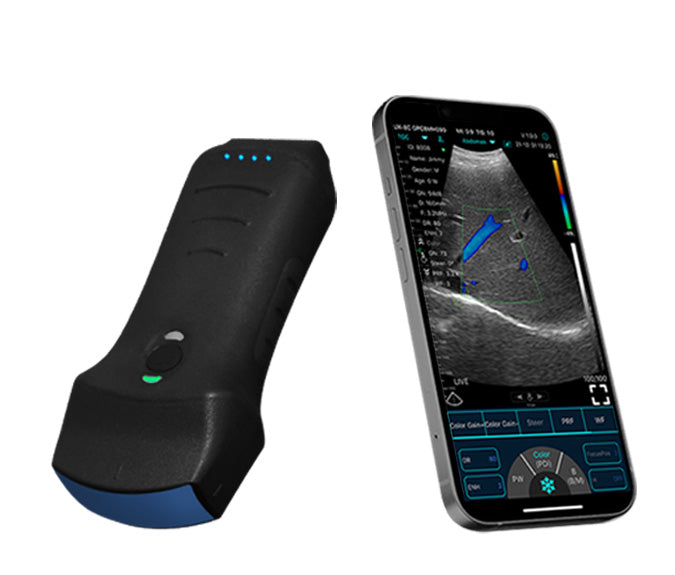

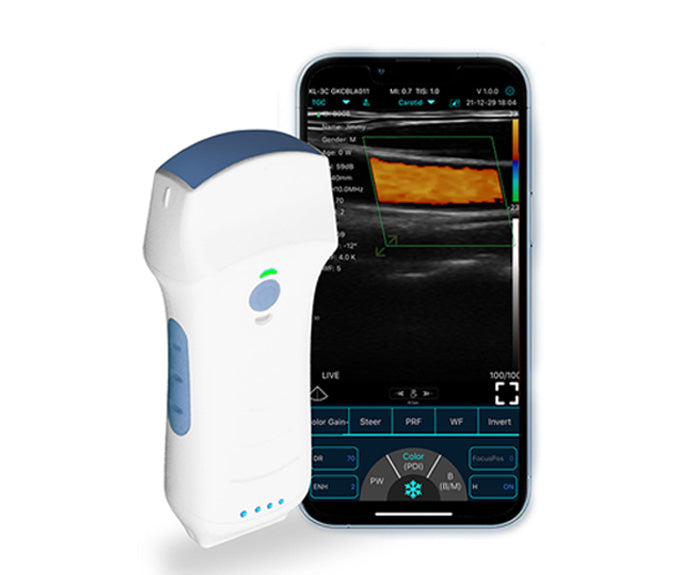

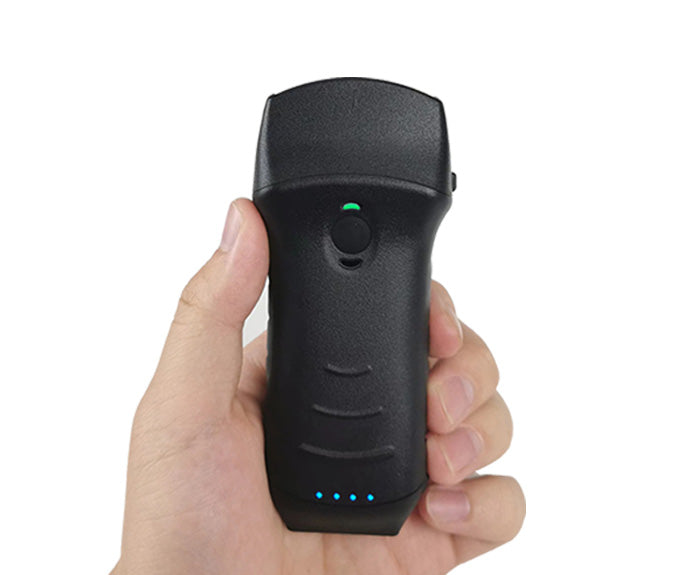

Newest C10TX Wireless bluetooth ultrasound scanner with dual probe, multipurpose handheld convex+linear+cardiac Ultrasound probe can diagnose whole body parts. C10TX can be used by wired or wireless connection to mobile phones/ipad/PC. It is IP68 waterproof, you can scan whole body part anytime anywhere.



Specification of FirstMed C10TX Dual-probes Multipurpose Ultrasound convex+linear probe

Product specs:

Probe Wireless dual head convex+linear+Cardiac probe
Elements Dual 128
Frequency 3.2/5Mhz , 7.5/I0Mhz ，2.5/5Mhz
Depth

90-160-220-305mm , 20-40-60-100mm ，90-120-140-160mm
Presets

Abdomen, GYN, OB, Cardiac,Urology, Kidney, Lung,User1, User2;

Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, Msk, Nerve,  Aesthetics, Vessel Flow, User1,User2;
Host Android/IOS/Windows Tablet, Smart phone, PC
Connection WiFi & USB
Software Adjustable Parameters GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down.
Measurement B: Length, Area/Circumference, Angle, Trace, Distance GA(CRL,BPD,GS,FL,HC,AC)EFW(BPD,FL)
B+M: Heart rate, Time, Distance, LVID(LVIDd, LVIDs, EF, SV)
B+PW: Velocity, Heart rate(2), S/D, Depth.
Playback Frames 100, 200, 500, 1000 optional
Display mode B, B+B, B/M, Color, PW, PDI, B+Color+PW
Image Gray Scale 256 level
WiFi Type Built-in WiFi, 802.11g/20MHz/5G/450Mbps
Channel 64
Frame 24s/f
Gain 40-110Db
Language Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)
Power * by built-in 1 Lithium batteries 2800 mAh.
Battery Replaceable Yes (by engineer)
Battery Last * 4hours (Working time), 72 hours(Stand by time)
Charger wireless charger
Anti skid Design /
Waterproof grade * IP68
Built-in cooling coating * Yes
