FirstMed C10RL Dual-Probes Multipurpose Ultrasound Convex + Linear + Cardiac Probe

FirstMed C10RL Dual-Probes Multipurpose Ultrasound Convex + Linear + Cardiac Probe

$0.00 USD
$0.00 USD
Sale Sold out

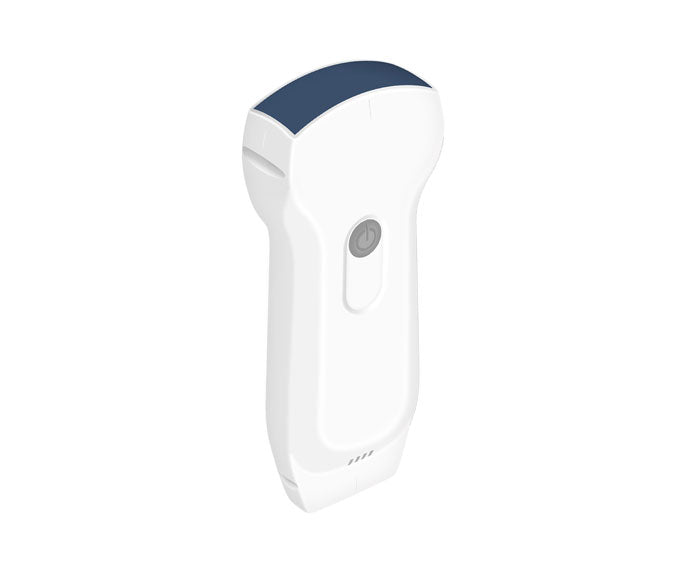

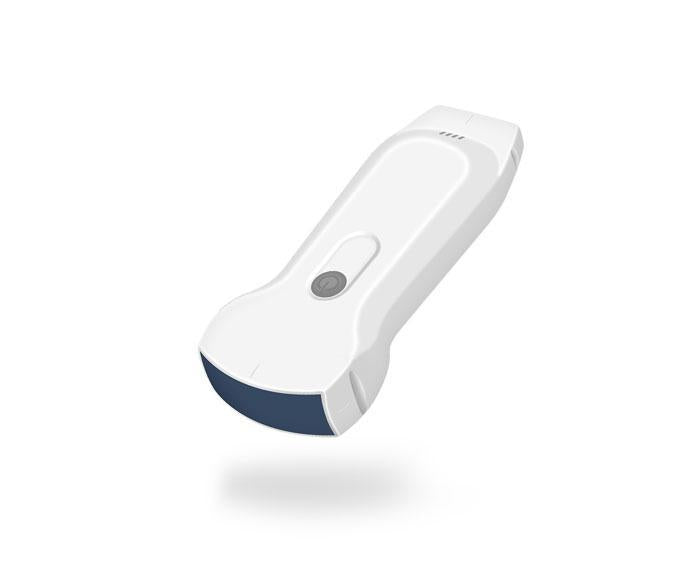

The FirstMed C10RL is a combination of two probes, one side of the convex array probe and the other side of the line array probe, and the convex array probe has a cardiac preset function.The Konted C10RL is a wireless ultrasound scanner with dual probe, 3 in 1 multipurpose handheld convex+linear+cardiac whole body ultrasound scan.



FirstMed C10RL Dual-probes Multipurpose Ultrasound Specifations

Product specs:

Probe Wireless dual head convex+linear probe
Elements Dual 128
Frequency 3.2/5.0mhz, 7.5/10mhz,2.5/5.0mhz
Depth 90-160-220-305mm, 20-40-60-100mm, 90-120-140-160mm
Presets

Abdomen, Gynecology, Obstetric, Cardiac, Urology, Kidney, Lung, User1, User2


Thyroid, Small parts, pediatrics, Vascular, Carotid, Breast, Msk, Nerve,Aesthetics, Vessel Flow ,User1, User2

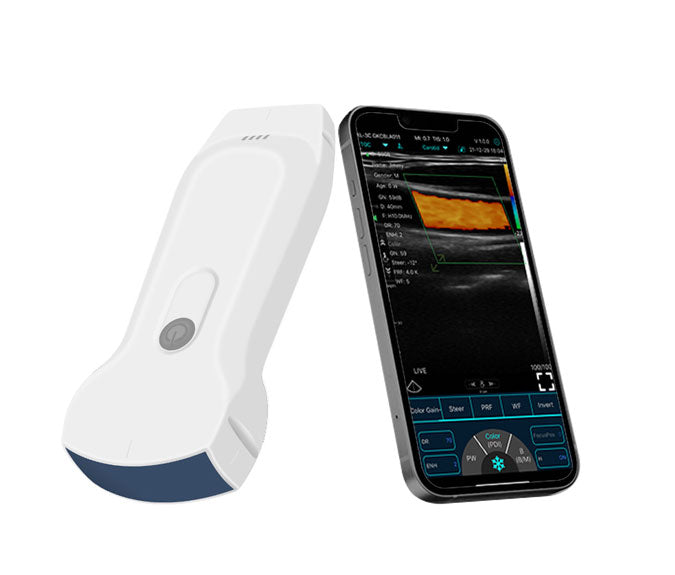

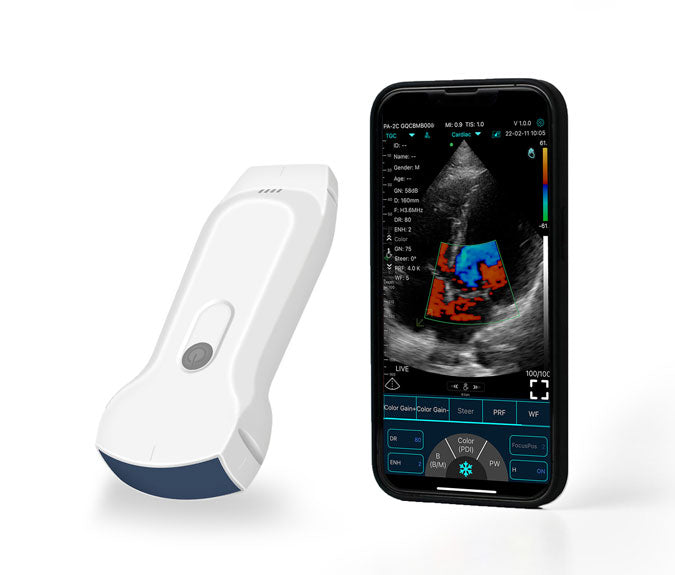

Host Tablet, Smart phone, PC
Connection WiFi&USB
Software Adjustable Parameters GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down.
Measurement

B: Length, Area/Circumference, Angle, Trace, Distance GA(CRL,BPD,GS,FL,HC,AC)EFW(BPD,FL)
B+M: Heart rate, Time, Distance, LVID(LVIDd, LVIDs, EF, SV)
B+PW: Velocity, Heart rate(2), S/D, Depth.
Automatic Vessel Flow Measure：PS, ED, TAMAX, TAMEAN, PI, RI, S/D, DIAM, FL
Playback Frames 100, 200, 500, 1000 optional
Display Mode B, B+B, B/M, Color, PW, PDI, B+Color+PW
Image Gray Scale 256 level
WiFi Type Built-in WiFi, 802.11g/20MHz/2.4G/5G/450Mbps
Channel 32
Frame 24f/s
Gain 40-110Db
Language Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)
Power by built-in Lithium battery
Battery Replaceable Yes  (by engineer)
Battery Last 3hours (Working time), 12 hours(Stand by time)
Charger USB Charger, wireless charger
Waterproof Grade IPX5
