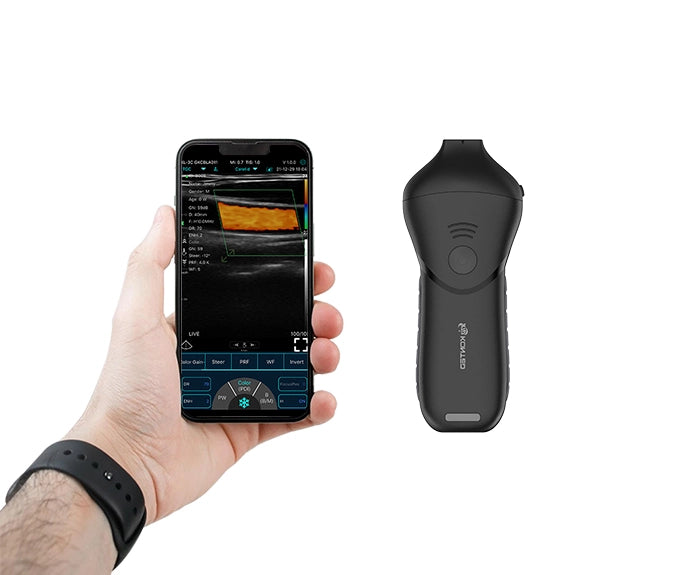

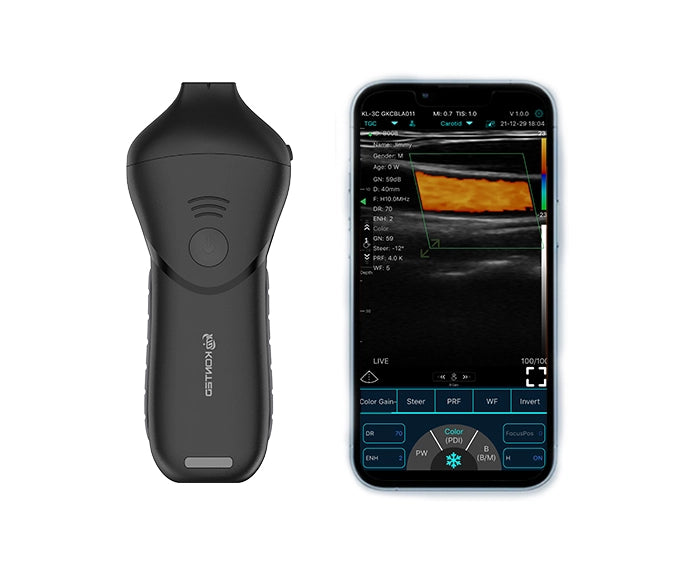

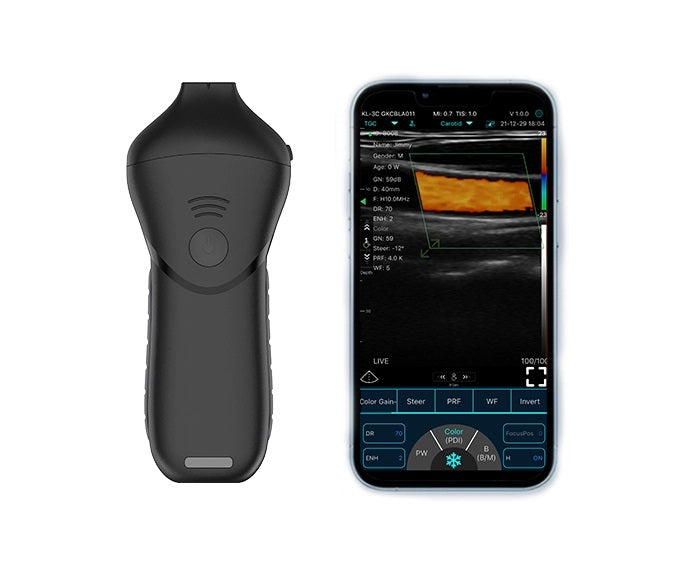

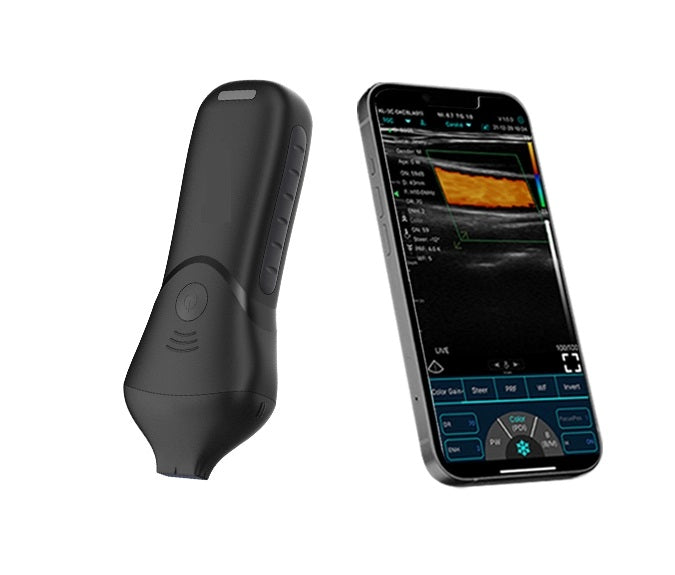

FirstMed C10MR Pro USB&Wifi High Linear Ultrasound Probe

FirstMed C10MR Pro USB&Wifi High Linear Ultrasound Probe

$0.00 USD
$0.00 USD
Sale Sold out

On the basis of FirstMed C10MR, we have upgraded it and named it C10MR pro. We have added a dual battery design, increased battery life, and added a 4-sided anti slip design, achieving a waterproof level of IP68. Konted C10MR pro is a high-frequency linear array wireless ultrasound scanner designed by Konted for the facial aesthetics market.

Specification of FirstMed C10MR Pro USB&Wifi High Linear Ultrasound Probe

Model C10MR Pro
Probe Type High Frequency Linear Probe
Software Systems Android. IOS. Windows
Probe Button -Power on/off
-Freeze/unfreeze
*Connection Wi-Fi
USB
Wi-Fi Type 802.11n/20MHz/
2.4G/5G
Frequency 18/24Mhz
Scan Depth 10-15-20-25mm
Length 18*5mm
Elements 192
Channel 64
DR 40-110Db
Dimensions 152x62x30mm
Weight 223g
Waterproof Grade

IP68
Display Mode B
B+B
B+M
Color
PW
PDI
*Dual&Full screen Display
Software Control
B GN(Gain)
Color GN(Gain)
D(Depth)
ENH(Enhancement)
DR(Dynamic Range)
H(harmonic)
Focus
8 TGC
Mid-Line
An note
Page Left/Right Up/Down		 ●

●
●
●
●
●
●
●
●
●
●
●
*Body Mark ●
Dicom ●
Image storage JPEG, MP4, Dicom
Clip Loop Automatic / manual
100-200-500-1000 frame
Frame rate 18~24 F/S
Presets Aesthetics,Vascular, Nerve,Vessel Flow ,user1, user2
Measures B: Length, Distance,Area/Circumference, Trace,Depth, Angle,
B+M: HeartRate, Time, Distance, LVID
B+PW:Velocity, Heart Rate(2), S/D, Depth, Time.
Measure Magnify ●
*Built in cooling coating ●
*Working While charging ●
Battery Built-in 2 High capacity Lition batteries
4400 mAh,
Power Consumption 3 W (Live) / 1 W (freeze)
Continuous hours of scanning 4h
72h Ultra-long standby
Recharge time 2h
*Charging Type-C USB
Wireless charging
Language Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil)
