Handheald Ultrasound or scaner probe wireless Model C10HL Dual : Phased + Linear Firstmedcorp.us
Handheald Ultrasound or scaner probe wireless Model C10HL Dual : Phased + Linear Firstmedcorp.us
Couldn't load pickup availability

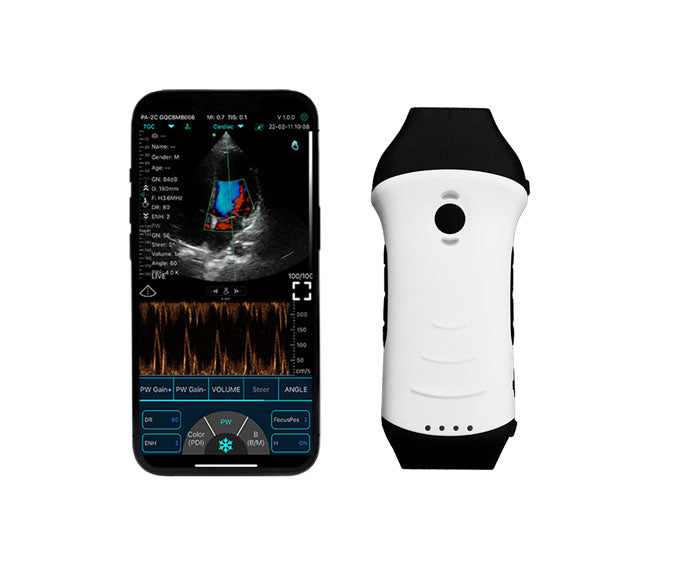

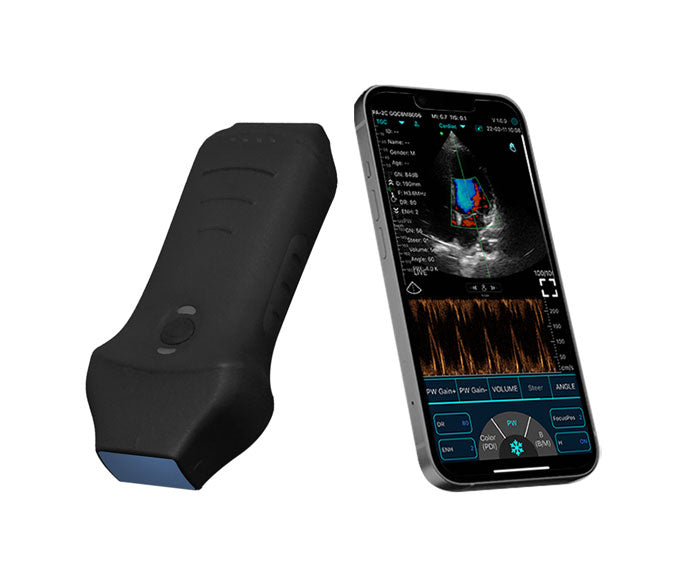

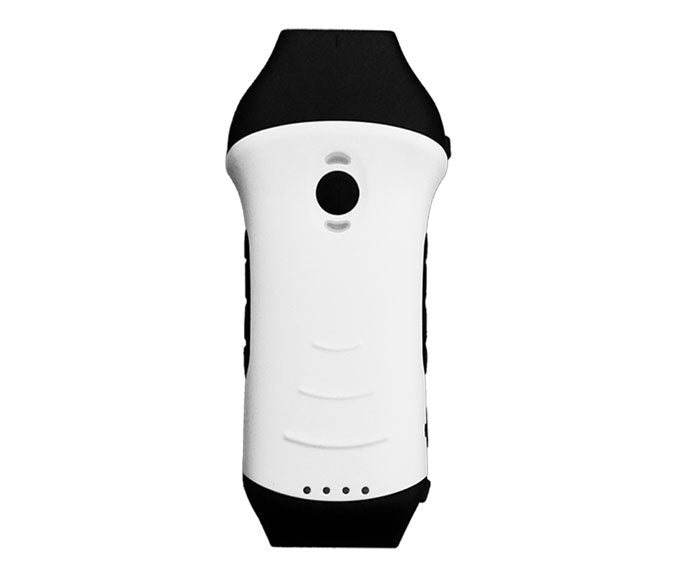

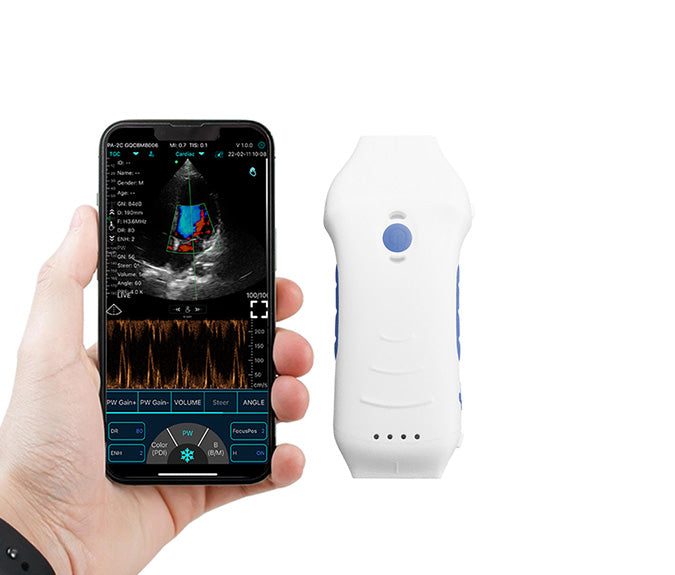

FirstMed C10HL portable ultrasound probe can establish wired or wireless connections with mobile phones, iPads, or PCs. This IP68 waterproof device allows you to scan any body part at any time and any place. On the other hand, the newest handheld bluetooth ultrasound probe provides the latest mini-wireless cardiovascular ultrasound. The multipurpose dual head linear+cardiac ultrasound probe can offer you high-definition images of the heart and assists with heart function assessments using the dual-head cardiac ultrasound.
Our product line includes a range of devices like handheld ultrasound probe, linear ultrasound probe, and Bluetooth ultrasound device, each equipped with features and functionalities designed to streamline diagnostic procedures and provide clearer, more accurate images. If you're looking for high-quality linear probes ultrasound or any other ultrasound device, please don't hesitate to inquire about our products - we're always happy to help!
Specification of FirstMed C10HL Dual-probes Multipurpose Ultrasound linear+phased probe
Product specs:
| Probe | Wireless dual head phased+linear probe |
| Elements | Dual 128 |
| Frequency | 2.2-3.6mhz, 7.5/10mhz |
| Depth | 90-160-200-240mm, 20-40-60-100mm,90-130-160-200mm |
| Presets |
Abdomen, Cardiac, User1, User2 Thyroid, Small parts, pediatrics, Vascular, Carotid, Breast Msk, Nerve Aesthetics VesselFlow User1,User2 |
| Host | Tablet, Smart phone, PC |
| Connection | WiFi&USB |
| Software Adjustable Parameters | GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down. |
| Measurement | B: Length,Area/Circumference,Angle,Trace,Distance |
| B+M: Heart Rate, Time, LVIDd, LVIDs, SV, EF, Distance | |
| B+PW:Velocity, Heart Rate(2), S/D, Depth | |
| Automatic Vessel Flow Measure：PS, ED, TAMAX, TAMEAN, PI, RI, S/D, DIAM, FL | |
| Playback Frames | 100, 200, 500, 1000 optional |
| Display Mode | B, B/M, color, PW, PDI |
| Image Save | jpg, avi, Mp4 and DICOM format |
| Image Gray Scale | 256 level |
| WiFi Type | Built-in WiFi, 802.11g/20MHz/2.4G/5G/450Mbps |
| Channel | 32 |
| Frame | 24s/f |
| Gain | 40-110Db |
| Language | Chinese, Ukrainian, German, English, Russian, France, Italian, Spanish, Portuguese (Brazil) |
| Power | * by built-in 2 Lithium batteries |
| Power Consumption | 3W (probe run) /1W (probe stop) |
| Battery Replaceable | Yes (by engineer) |
| Battery Last | * 4hours (Working time), 72 hours(Stand by time) |
| Charger | Type-C USB Charger, wireless charger |
| Anti skid Design | * 4 sides of probe |
| Waterproof grade | * IP68 |
| Built-in cooling coating | * Yes |
